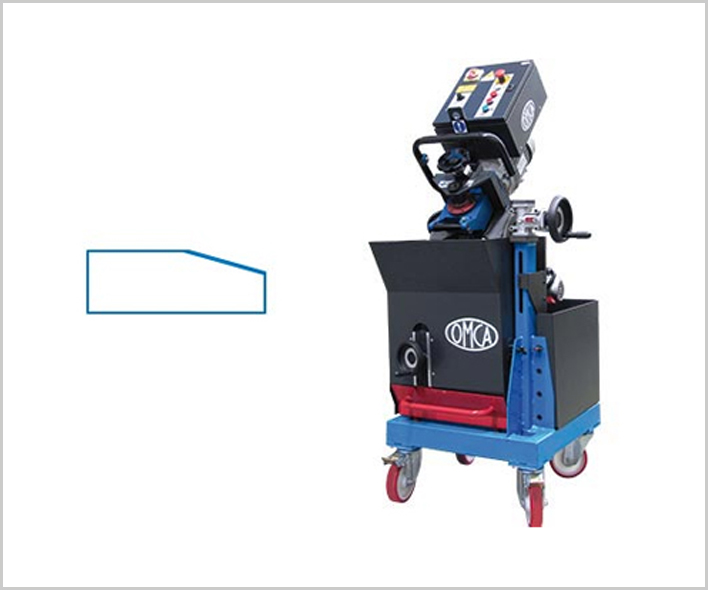

Plate Bevelling Machines ART - 900 PLUS

50 YEARS OF CELEBRATION... LEGACY OF DEDICATED SERVICE, QUALITY PRODUCTS, CUSTOMER SATISFACTION AND RELATIONSHIP

Authorised Channel partner for OMCA

Description
Frame in steel and aluminium casting.
Hardened work plate with sliding rollers.
Motorized feeding with two polyurethane wheels (90 shore).
Trolley complete with height adjustment devices, chips protection, chip box, and swivel wheels with brake.
Possibility to work with the trolley lifted in the presence of irregular floor.
Possibility to work also without trolley.

Performances


Motor power Three-phase 230/400 Volt, 4kw, 50/60 Hz, 4 pols
Chamfering adjustment From 5 mm to 36 mm to 45° (56 mm diagonal)
Chamfering angle From 15° to 80°
Plate thickness From 8mm to 60mm
Cutter Ø 80 mm Z 6
Cutter speed From 0 to 750 RPM
Chamfering speed From 0 to 1 mt/min
Working height 800 mm ÷ 980 mm
Working direction
Dimensions 600 x 650 x h 1700 mm
Application Steel, stainless steel, cast iron, aluminium, alloy titanium, hardox, super duplex and so on
Weight Kg. 215
Packing dimension 920x820x1580mm - Kg. 250

(*) Different voltage available on request


Cutter
Sketch F0008 Standard
Diameter Ø80 mm
H=50 mm
Ø=27 mm (1x)
Insert ISO SDHT1204
12,7x12,7
Thickness
4,76mm
6
Material WIDIA
Insert code 02045018
Option Coated
02045018/R

For light alloy
02045018/A


Bevelling Performances



MAX ACHIEVABLE CHAMFER AT FIRST STEP

ANGLE Α15° Α30° Α45° Α60° Α75°
Chamfer lenght L 27 15.5 13.4 15.5 24.5
Run depth S 6.7 6.7 6.7 6.7 6

MAX ACHIEVABLE CHAMFER

ANGLE Α15° Α30° Α45° Α60° Α75°
Chamfer lenght L 73.4 58 55 58 77


Special versions
•  Plate thickness 8/100 mm and 8/200 mm
•  Plate thickness less than 8 mm
•  Cutter speed variator
